.PCIeX4/SATA | |||
.Pin Location 59-66 | |||
.Wi-Fi | |||
.Bluetooth | |||
.Global Navigation Satellite Systems (GNSS) | |||
.Near Field Communication (NFC) | |||
.WiGig | |||
.WWAN (2G, 3G, and 4G) | |||
.Solid-State Storage Devices (SSD) | |||
.Other and Future Solutions |

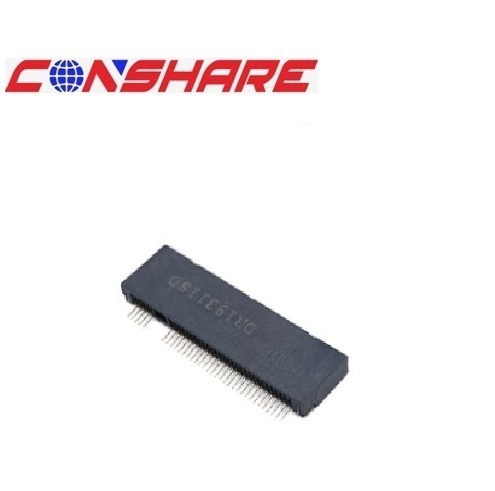

公/母型: | 母端 |
Key位: | M-Key |
产品高度: | 2.0mm(板上高) |
接触镀层: | Au G/F |
Pin数: | 67 |
焊脚类型: | SMD |
焊脚间距: | 0.5mm |
配置形态: | 180度 |
塑胶材质: | LCP |
接触材质: | 铜合金 |
阻燃等级: | UL 94V-0 |
塑胶颜色: | 黑色 |
端子排数: | 2 |
工作电压: | 50V |
工作电流: | 0.5A/Pin |
制程工艺: | 回流焊 |
工作温度: | -40°C ~ 80°C |
包装方式: | Reel |
